5 Layers Air Bubble Film Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
five Layers Air Bubble Film Machine
five layers air bubble film machine with two extruders,two unwinder device,afford two roll film,such as aluminum film or Pearlescent film to laminate bubble film.
Air bubble film machine simple design,easy operate,design for 24 hours 7 days working.
The air bubble film machine can produce three layers air bubble film,add unwinder device can produce 4 layers air bubble film and 5 layers air bubble film,
is designed for continuous operation 24/7 with a simple design and easy operation.
It is constructed using Low Density Polyethylene (LDPE) or recycled LDPE materials and is available in machine widths of 1200mm, 1500mm, 2000mm, 2500mm, or 3000mm.
This machine produces bubble films with two layers in various colors such as red, blue, and yellow, and can be powered by 220V, 380V, 440V, or 480V.
Technical Variables:
| Model | KDPEG-1000 | KDFPG-1200 | KDPEG-1500 |
| Raw Material | LDPE,recycle material,masterbatch and additives material | ||
| Screw Diameter | φ65mm+φ50mm | φ75mm+φ60mm | φ90mm+φ70mm |
| Bubble film Max. width | 600mm | 1200mm | 1500mm |
| Bubble Film Layer | 3 layers,4 layers,5 layers | ||
| Bubble Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Output | 55kg/h | 70kg/h | 90kg/h |
| Total power | 75kw | 82kw | 98kw |
| L/D Ratio Of Screw | 28：1 | 28：1 | 28：1 |
| Water Consumption | 0.5m3/h | 0.5m3/h | 0.5m3/h |
| Machine Weight | 3.5 | 4.5 | 5 |
| Power Voltage | 220V,380V,440V(Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Air Shaft Diameter | without paper core ,58mm,76mm | ||
| Machine Working Time | 24 hours*7 | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
two layers air bubble film machines

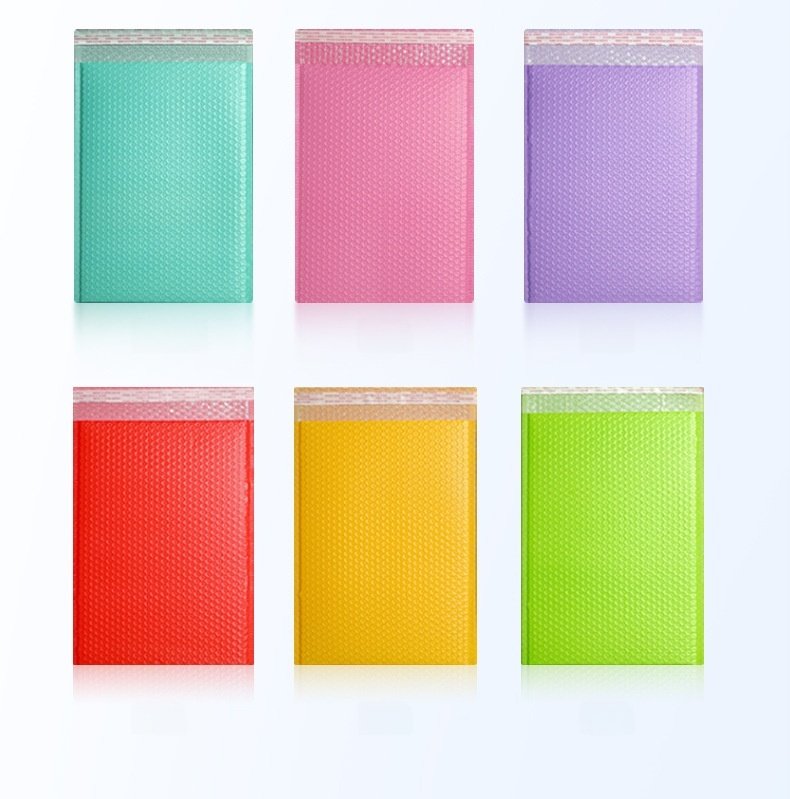

air bubble wrap film bubble bag
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Bubble Film Machine Working in Customer Factory
two layers air bubble film machines
Install Strech Film Machine in Customer Factory
install machines in customers factory
